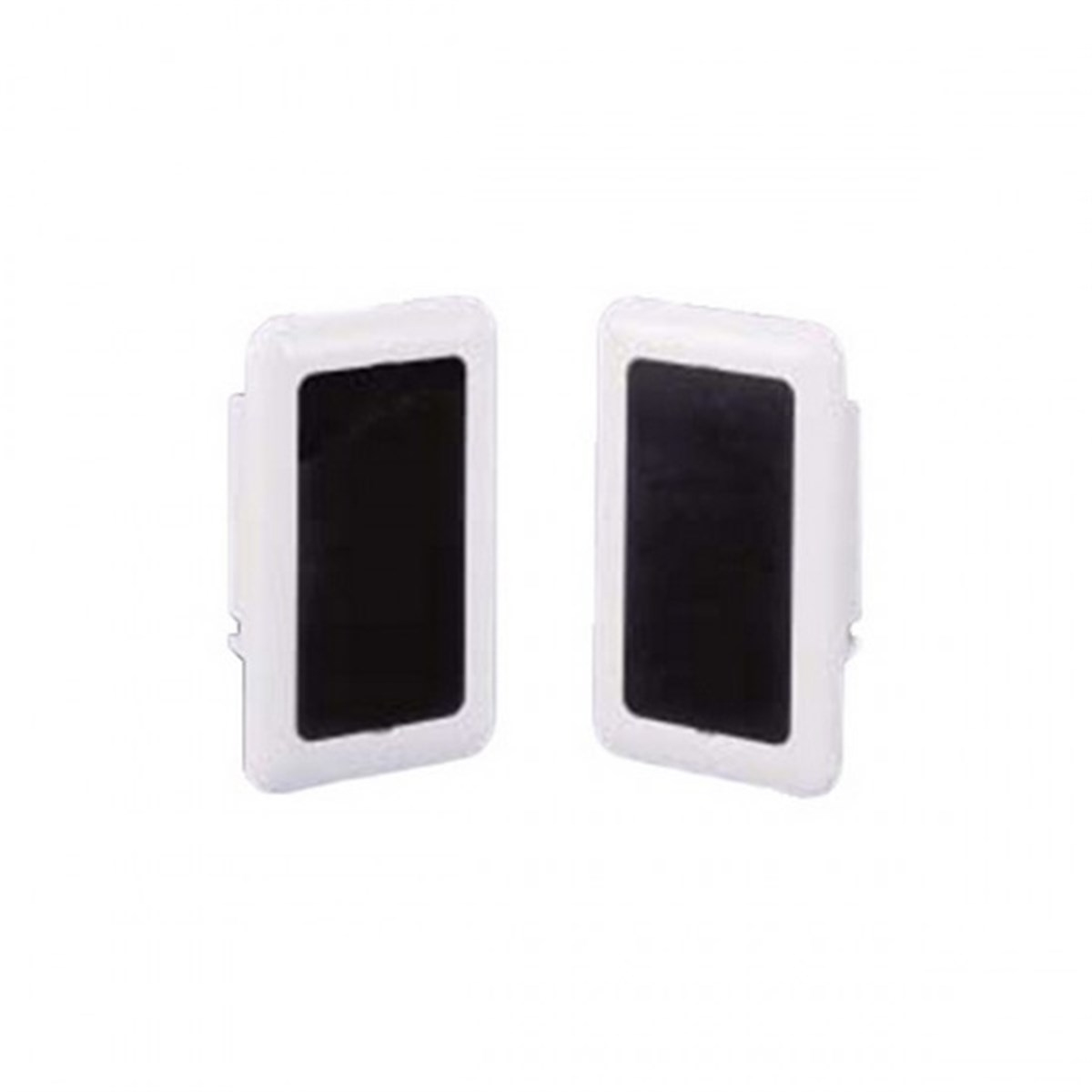

PB-30SU INDOOR FLUSH MOUNT PHOTO BEAM (GUPBPB30SU0)

PB-30SU INDOOR FLUSH MOUNT PHOTO BEAM

Features:

• Detection system - Break ing of infrared beam
• Protection distance - 100ft.
• Max. Beam range - 490ft.
• Response time -50 msec. to 100 msec.
• Supply voltage - 10VDC to 30VDC (non-polar ity)
• Power consumption - T ransmitter : 7mA or less at 12VDC 12mA or less at 30VDC R eceiver : 25mA or less at N/C contact mode 31mA or less at N/O contact mode
• Alarm output - Dry contact relay output N/C・N/O changeover Contact action : I nter ruption time (Min. 2sec.) Contact capacity : 24V (AC / DC) 0.25A or less
• Tamper output - Dry contact relay output N/C Contact action : Activated when cover is detached Contact capacity : 30V (DC) 0.1A or less
• Alarm LED - Red LED (Receiver ) Light ON : when an alarm is initiated
• Beam adjustment - Horizontal ±15°, Vertical ±5°
• Ambient temperature range - －4°F to ＋ 122°F
• Mounting position - Indoor
• Wiring - Terminals
• Weight - Transmitter 3.2oz (90g), Receiver 3.4oz (95g)
• Appearance - Main Body : ABS resin (white) Cover : PMMA resin (wine red)
