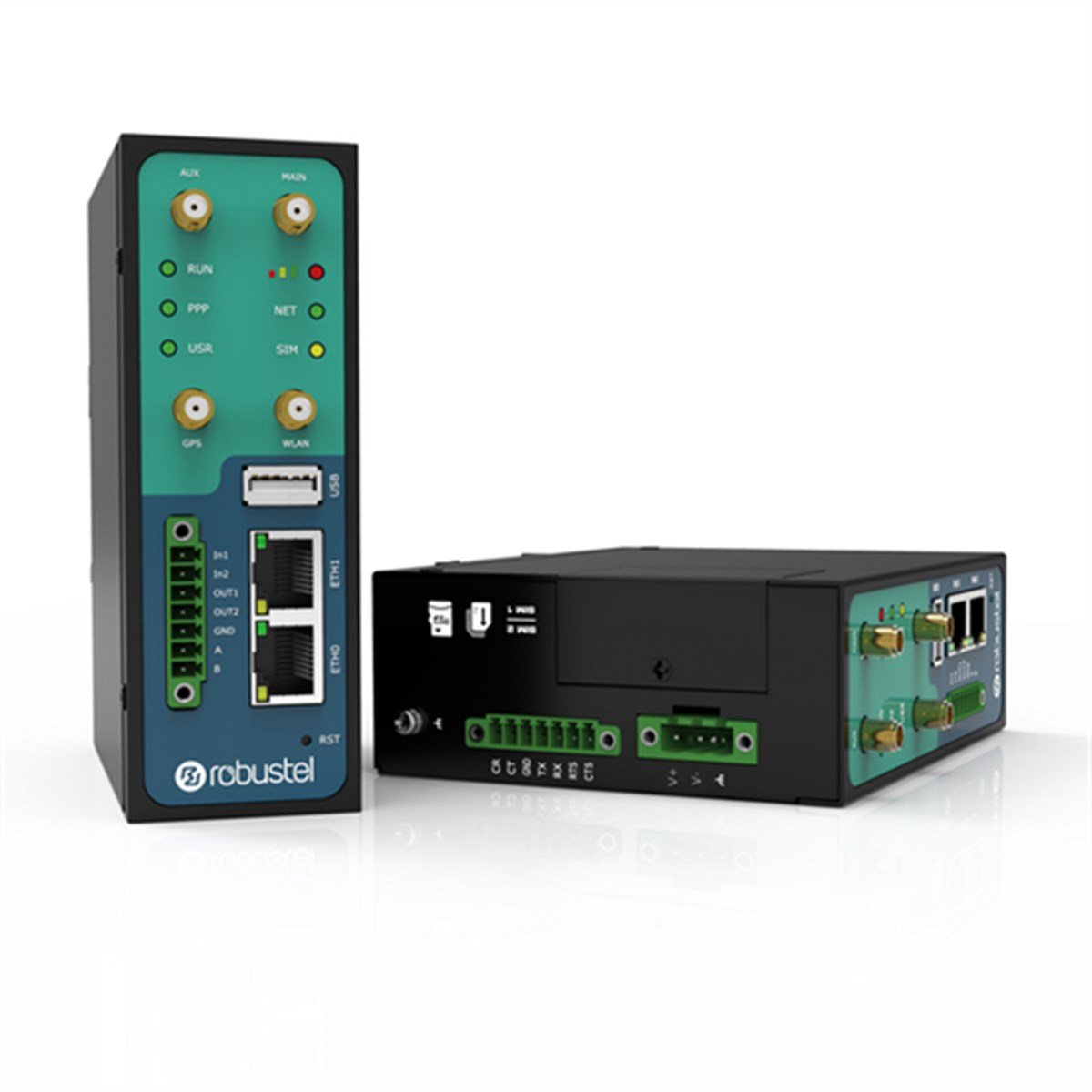

R3000-3P Robustel 3G Router
R3000-3P Robustel 3G Router

R3000-4L Robustel 3G/4G Router (R3000-4L)

Brand : Robustel
Price : $474.00  + VAT
Vat included : $568.80
Stock Amount : 1

Dual SIM 3G/4G  Router, 2 Ethernet,
LTE Router
2 Serial Ports

Add to Favorites
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Piece

Artır Azalt
Recommend
Write a comment



Dual SIM 3G  Router, 2 Ethernet,
LTE Router
2 Serial Ports

  • Dual SIM card for uninterrupted and seamless connection in GPRS/EDGE/3G/4G communication
  • WAN link management: Cellular WAN/Ethernet WAN/WLAN WAN backup line
  • VPN tunnel: IPSec/OpenVPN/PPTP/L2TP/GRE.
  • Modbus Gateway feature: Bidirectional conversion from Modbus RTU/ASCII to Modbus TCP
  • IEC104 protocol support
  • GPS support (optional), real time and location information
  • 802.11 b/g/n Wi-Fi support (optional), AP and client mode.
  • SDK (software development package) support that provides a programming interface to users
  • Auto reboot via SMS/Caller ID/Timing
  • RobustLink centralized M2M management platform support (freeware)
  • Flexible management methods: Web/CLI/SNMP/RobustLink
  • Firmware update via Web/CLI/USB/SMS/RobustLink
  • Support for a wide variety of interfaces such as RS-232, RS-485, console, DI/DO, USB and Ethernet
  • 9 - 60 VDC wide voltage input options and wide operating temperature range
  • Metal enclosure for DIN-Rail or wall mounting

Robustel R3000 series is a 3G/4G VPN router designed to operate in severe industrial conditions. They are devices with high-level communication functions that provide uninterrupted communication in Machine to machine (M2M) applications. It addresses a wide range of applications including:

  • ATM/Vending Machine Connection
  • Solar / Wind Energy Automation System
  • Energy Distribution Automation System
  • Automatic Meter Reading System
  • Industrial automation
  • IP Video Monitoring and Security System
  • Remote Device Access and Control System



Delivery Time : 8 9 Wekks (Estimated)



Cellular Interface
Number of antennas 2 (MAIN + AUX)
Connector SMA-K
SIM 2 Mini SIM (2FF)



Ethernet Interface
Number of ports 2 x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN
Magnet isolation protection 1.5 KV



Wi-Fi Interface (Optional)
Number of antennas 1
Connector RP-SMA-K
Standards 802.11a/b/g/n, supporting AP and Client modes
Frequency bands 2.4 GHz
5 GHz
Security Open,WPA, WPA2, WEP
Encryption AES, TKIP, WEP64
Data speed Up to 150 Mbps



GNSS Interface (Optional)
Number of antennas 1
Connector SMA female with 50 ohms impedance
Tracking sensitivity GPS: greater than -148 dBm
GNSS: greater than -140 dBm

Horizontal position

 GPS: 2.5 m
accuracy GLONASS: 4.0 m
Protocol NMEA-0183 V2.3



Serial Interface
Number of ports 1 x RS-232 + 1 x RS-485
or 2 x RS-232 or 2 x RS-485Optional hardware is 2 x RS-485 or 2 x RS-232
Connector 7-pin 3.5 mm female socket with lock
ESD protection ±15 KV
Baud rate 300bps to 230400bps
Flow control RTS/CTS (for RS232)



DI/DO
Type

2 x DI (dry contact) + 2 x DO (wet contact),

4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x DI
Connector 7-pin 3.5 mm female socket with lock
Isolation 3KVDC or 2KVrms
Absolute maximum VDC “V+” +5V DC (DI), 30V DC (DO)
Absolute maximum ADC 300 mA



Others
Reset button 1 x RST
SD 1 x Micro SD interface
Expansion 1 x USB 2.0 host up to 480 Mbps
LED indicators

1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET,1 x SIM
Built-in RTC, Watchdog, Timer



Software (Basic features of RobustOS)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH2, etc.
VPN tunnel IIPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Serial port

Transparent, DNP3 Transparent, TCP Client/Server, UDP, Modbus RTU Gateway



App Center (Available apps for RobustOS)
Apps

L2TP, PPTP, DMVPN, VRRP, QoS, SNMP,

Language, RCMS, Data Guard
*Request on demand. For more APPs please visit www.robustel.com.



SDK
Supported programming language C, C++
Flash available for SDK 64 MB
RAM available for SDK 64 MB



Power Supply and Consumption
Connector 3-pin 5 mm female socket with lock
Input voltage 9 to 60 VDC
Power consumption Idle: 100 mA@12 V
  Data link: 400 mA (peak) @12 V



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 570 g
Dimension 125 x 104 x 43.5 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -40 ~ +75 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH



Regulatory and Type Approvals
Environmental RoHS 2.0, WEEE
EMI EN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS IEC 61000-4-2 (ESD) Level 4



IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

IEC 61000-4-3 (RS) Level 4

IEC 61000-4-4 (EFT) Level 4

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

IEC 61000-4-8 (M/S) Level 4
