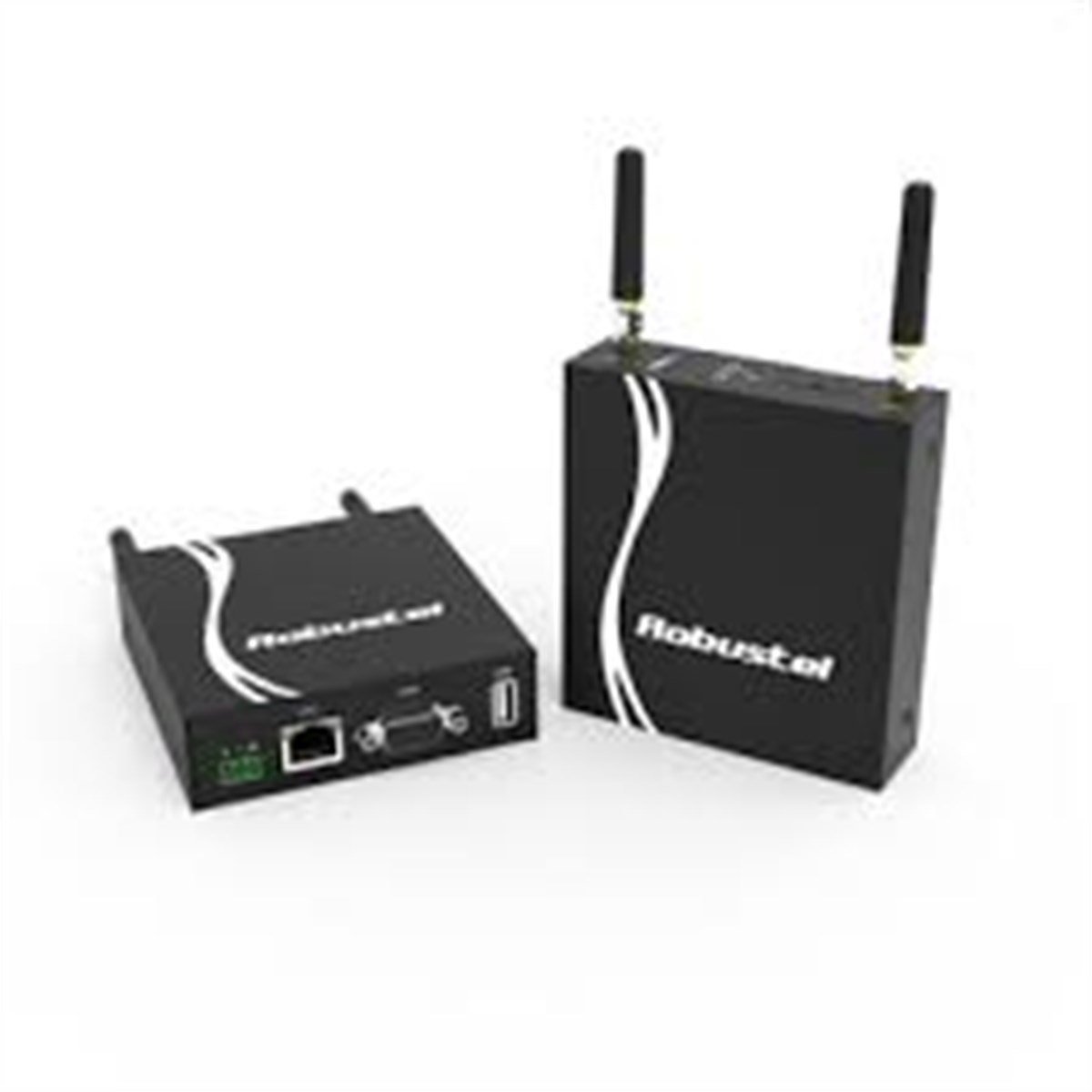

R3000-L3H Robustel VPN Router (R3000-L3H)

Brand : Robustel

Stock Amount : 1

Dual SIM industrial 2G / 3G / GSM/GPRS/EDGE/HSDPA VPN Router,
1 Ethernet, 2 Serial Port

R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.

Key Features

Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
RobustOS + SDK + App
IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
Management and maintenance via Web/CLI/SMS/SNMP/RobustLink Cloud
Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)

Cellular Interface
Number of ports	2 (MAIN + AUX)
Connector	SMA-K
SIM	2 (3 V & 1.8 V)
Standards	GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE

Ethernet Interface
Number of ports	1 x 10/100 Mbps LAN port
Magnet isolation protection	1.5 KV

Software(Basic features of RobustOS)
Network protocols	PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel	IPsec, OpenVPN, GRE
Firewall	DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management	Web, CLI, SMS
Serial port	Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center
Apps	L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption
Power supply interface	3.5 mm terminal block
Input voltage	9 to 36 VDC
Power consumption	Idle: 100 mA @ 12 V
	Data link: 400 mA (peak) @ 12 V

Physical Characteristics
Ingress protection	IP30
Housing & Weight	Metal, 305g
Dimension	105 mm x 98 mm x 29.5 mm
Installation	Desktop or wall mounting or 35 mm DIN rail mounting

Model	R3000-L3H	R3000-L3P	R3000-L4L
Router Type	HSDPA router	HSPA+ router	LTE router
Antenna Number	1	2	2
Air Interface	GSM/GPRS/EDGE/HSDPA	GSM/GPRS/EDGE/HSDPA/HSUPA/ HSPA+	GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/ HSPA+/DC-HSPA+/TD-SCDMA/ CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
	GSM/GPRS/EDGE/HSDPA	GSM/GPRS/EDGE/HSDPA/HSUPA/ HSPA+
Frequency Bands	–	–	Global: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28, B38/B39/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28, B40 US: B2/B4/B5/B13/B17 EMEA: B1/B3/B7/B8/B20/B28A JP: B1/B3/B8/B18/B19/B26, B41
4G	–	–
3G	B1/B8	B1/B2/B4(AWS)/B5/B8/B19	Global: WCDMA B1/B2/B4/B5/B6/B8/B19, B34/B39 AU: WCDMA B1/B8 US: HSPA+ B2/B5 EMEA: WCDMA B1/B8 JP: WCDMA B1/B6/B8/B19
2G	B2/B3/B5/B8	B2/B3/B5/B8	EMEA: B3/B8 Global/AU: B2/B3/B5/B8
Operating Environment	-40 to +75 °C/5 to 95% RH	-40 to +75 °C/5 to 95% RH	-40 to +75 °C/5 to 95% RH
Storage Environment	-40 to +85 °C/5 to 95% RH	-40 to +85 °C/5 to 95% RH	-40 to +85 °C/5 to 95% RH

*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
