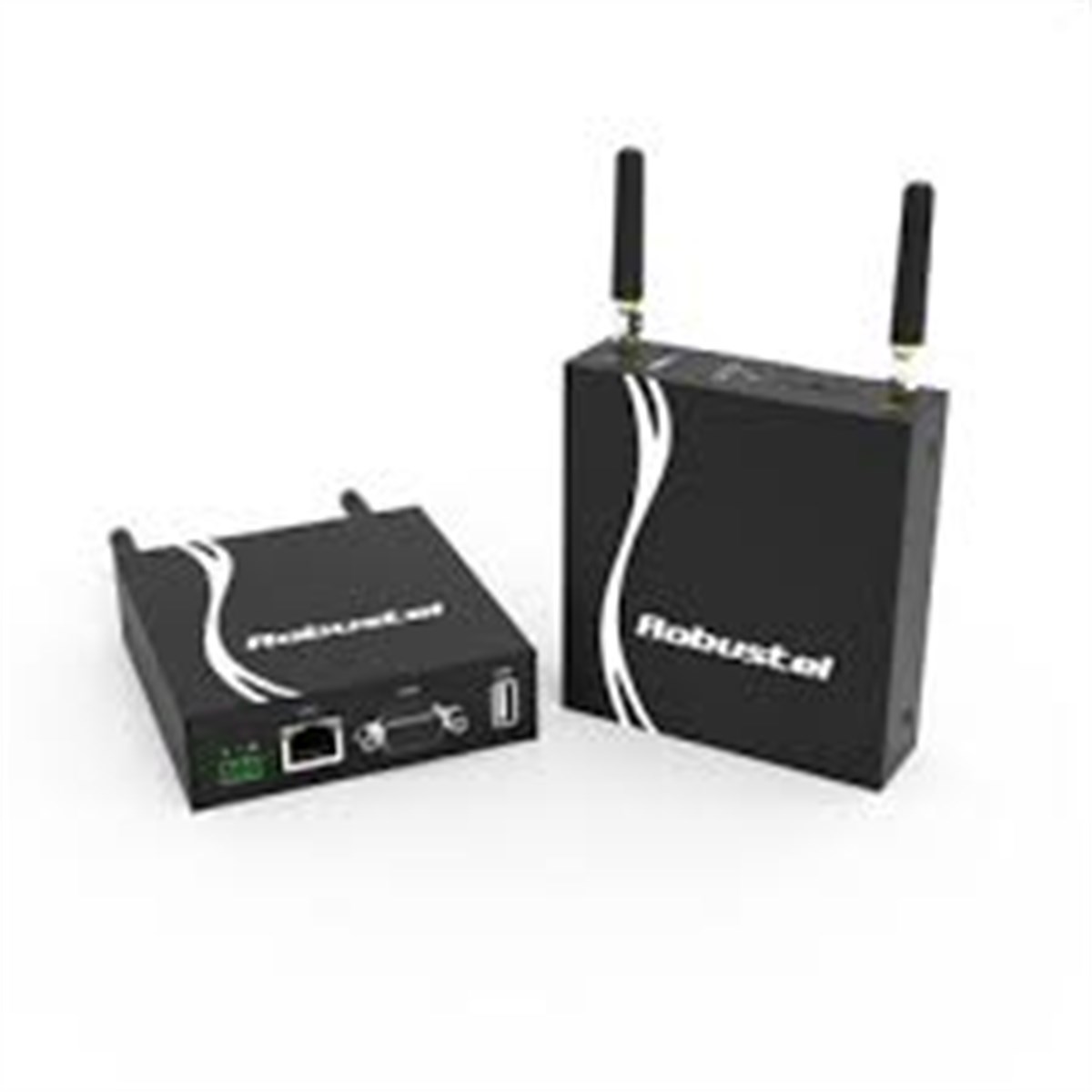

R3000-L4L Robustel VPN Router
R3000-L4L Robustel VPN Router

R3000-L4L Robustel VPN Router (R3000-L4L)

Brand : Robustel
Price : $291.00  + VAT
Vat included : $349.20
Stock Amount : 1

Dual SIM Industrial 3G / 4G / 4,5G  VPN Router, 1 Ethernet,
GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
2 Serial Port
Add to Favorites
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Piece

Artır Azalt
Recommend
Write a comment

R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.

Key Features

  • Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SMS/SNMP/RobustLink Cloud
  • Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
Cellular Interface
Number of ports 2 (MAIN + AUX)
Connector SMA-K
SIM 2 (3 V & 1.8 V)
Standards GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Ethernet Interface
Number of ports 1 x 10/100 Mbps LAN port
Magnet isolation protection 1.5 KV
Serial Interfaces
Number of ports 1 x RS-232 and 1 x RS-485
Connector DB9, female
ESD protection ±15 KV
Baud rate 300 bps to 230400 bps
Others
Reset button 1 x RST
Expansion 1 x USB 2.0 host up to 480 Mbps
LED indicators 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
Built-in RTC, Watchdog, Timer
Software(Basic features of RobustOS)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel IPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Serial port Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
App Center
Apps L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Power supply interface 3.5 mm terminal block
Input voltage 9 to 36 VDC
Power consumption Idle: 100 mA @ 12 V
  Data link: 400 mA (peak) @ 12 V
Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 305g
Dimension 105 mm x 98 mm x 29.5 mm
Installation

Desktop or wall mounting or 35 mm DIN rail mounting





Model

R3000-L3H

R3000-L3P

R3000-L4L

Router Type

HSDPA router

HSPA+ router

LTE router

Antenna Number

1

2

2

Air Interface

GSM/GPRS/EDGE/HSDPA



GSM/GPRS/EDGE/HSDPA/HSUPA/

HSPA+

GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/

HSPA+/DC-HSPA+/TD-SCDMA/

CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE



Frequency Bands

–

–

Global: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28, B38/B39/B40/B41

AU: B1/B2/B3/B4/B5/B7/B8/B28, B40

US: B2/B4/B5/B13/B17

EMEA: B1/B3/B7/B8/B20/B28A

JP: B1/B3/B8/B18/B19/B26, B41

4G

3G

B1/B8

B1/B2/B4(AWS)/B5/B8/B19

Global: WCDMA B1/B2/B4/B5/B6/B8/B19, B34/B39

AU: WCDMA B1/B8
US: HSPA+ B2/B5
EMEA: WCDMA B1/B8
JP: WCDMA B1/B6/B8/B19

2G

B2/B3/B5/B8

B2/B3/B5/B8

EMEA: B3/B8
Global/AU: B2/B3/B5/B8

Operating Environment

-40 to +75 °C/5 to 95% RH

-40 to +75 °C/5 to 95% RH

-40 to +75 °C/5 to 95% RH

Storage Environment

-40 to +85 °C/5 to 95% RH

-40 to +85 °C/5 to 95% RH

-40 to +85 °C/5 to 95% RH



*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
