IS-mC1 IS-Minialert Sounder and Beacon (GYAE2SISMC1)

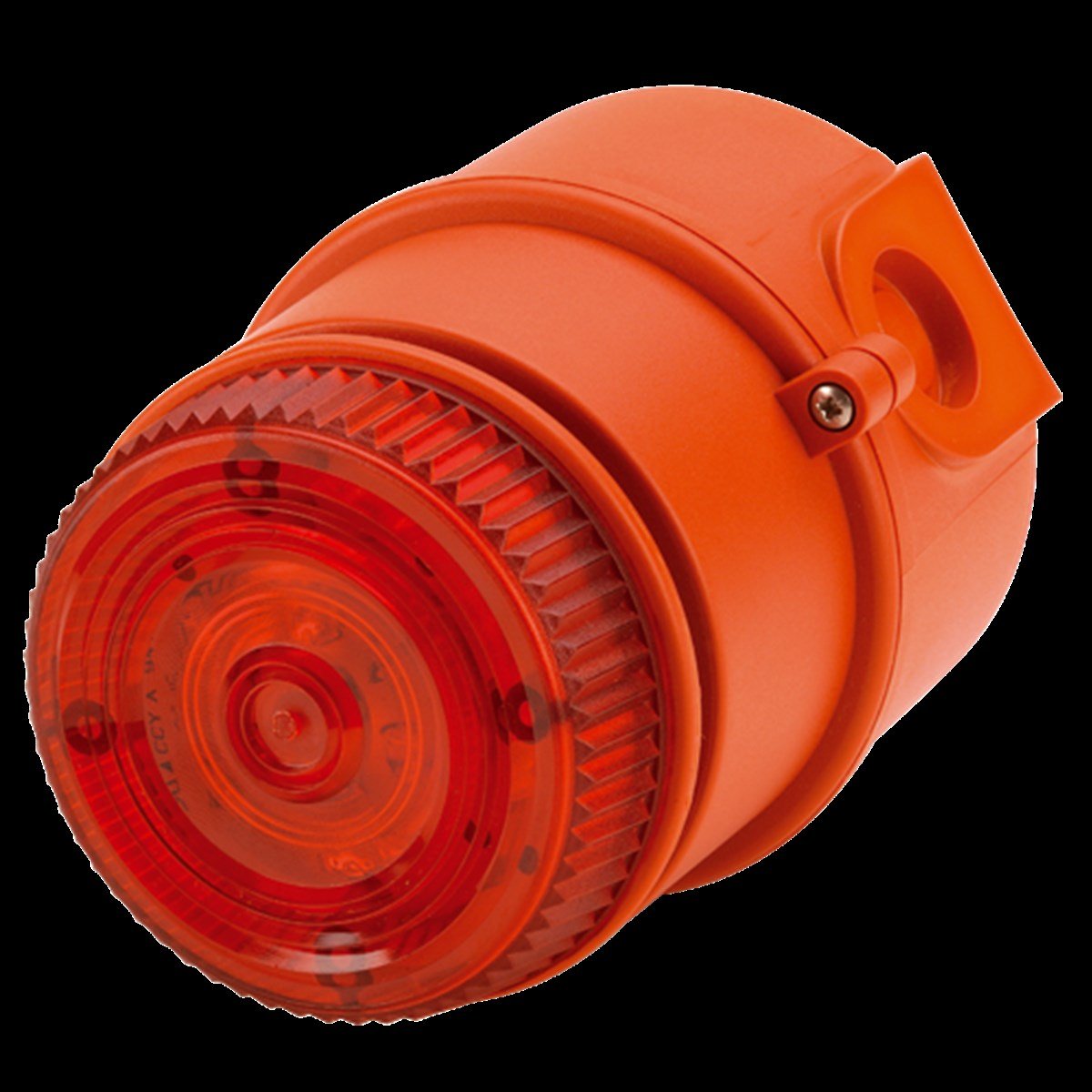

IS-mC1 IS-Minialert Sounder and Beacon

The IS-mC1 is a compact combined 100dB(A) alarm sounder and L.E.D. beacon – only one Zener barrier or galvanic isolator required to run both sounder & beacon or alternatively the unit can be operated as individual signals.

Approvals include ATEX, IECEx and GOST-R for Z one 0 applications and FM approval for Class I Division 1 and Class I Z one 0 applications.

Features

• Input overload and reverse current protection
• End of line resistor certified
• Auto synchronised sound output
• Prismatic lens optimises L.E.D effectiveness
• Available with custom tone configurations and frequencies

Approvals

• ATEX certificate: SIRA 05ATEX2084X, EN 60079-0 : 2012,EN 60079-11 : 2012, IEC 60079-26 : 2014
• IECEx certificate: IECEx SIR 06.0045X, IEC 60079-0 : 2011, IEC 60079-11 : 2011, IEC 60079-26 : 2014
• FM approved: Class 3600 1998, Class 3610 2010 Class 3810 2005
• GOST-R certificate: POCC GB.JB05.B03365
