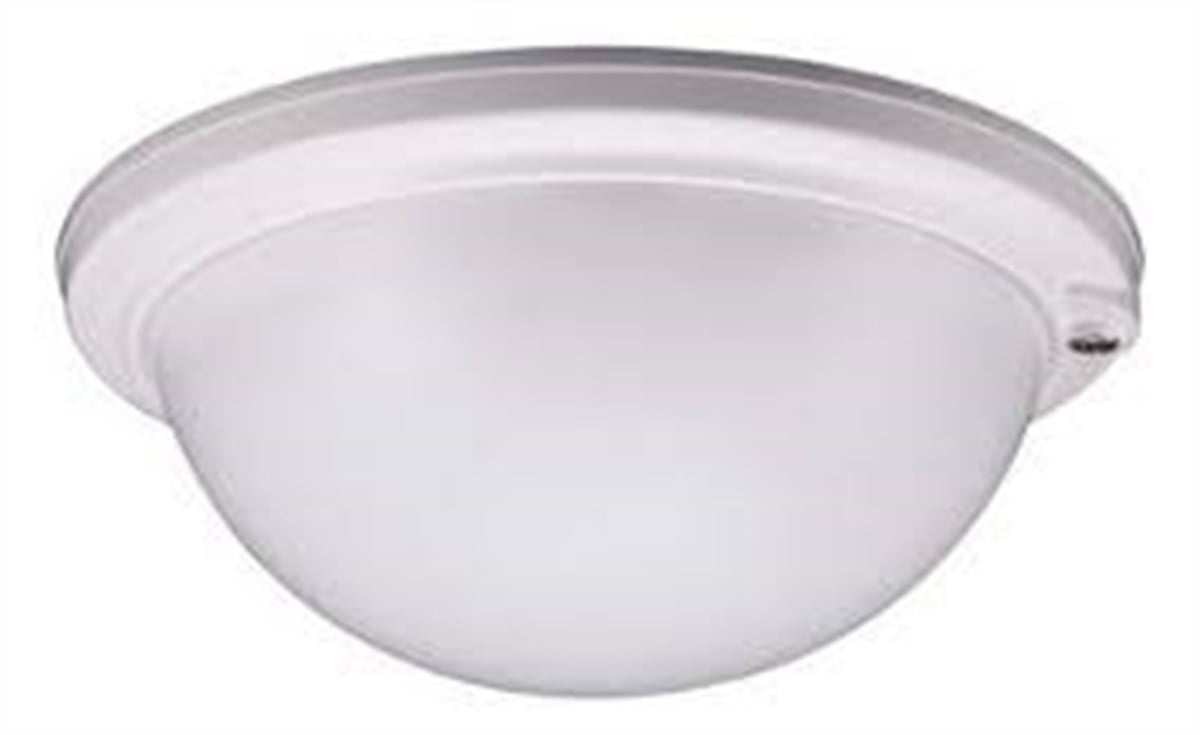

PA-6412PI PASSIVE INFRARED SENSOR (GUPPDPA6412)

PA-6412PI PASSIVE INFRARED SENSOR

FEATURES

● 18kg (39.7lb) pet immunity

● Ceiling mount design

● Multiple zone technology

● Mirror optics

● Detachable base unit with snap-in/out sensor design

● Insect protection

● Photo MOSFET relay for silent operation

Detection System: Passive infrared (Twin)

Alarm Output: Dry contact (Semi-conductor) relay output: N/C or N/O selectable

                       Reset time: approx. 2sec. 24V (AC/DC) 0.25A Max

Supply Voltage: 10 to 18VDC (non-polarity)

Current Consumption: 25mA

Features • Pulse count

               • LED disable switch

               • Low voltage alarm

Ambient Temperature: -15°C to +55°C (+5°F to +131°F)

Mounting Position: Indoor Ceiling

Optional Ceiling / wall mount attachment

External Dimensions: 147 dia. x 60mm (5.79 dia. x 2.36”)

Weight: 160g (5.6oz)
