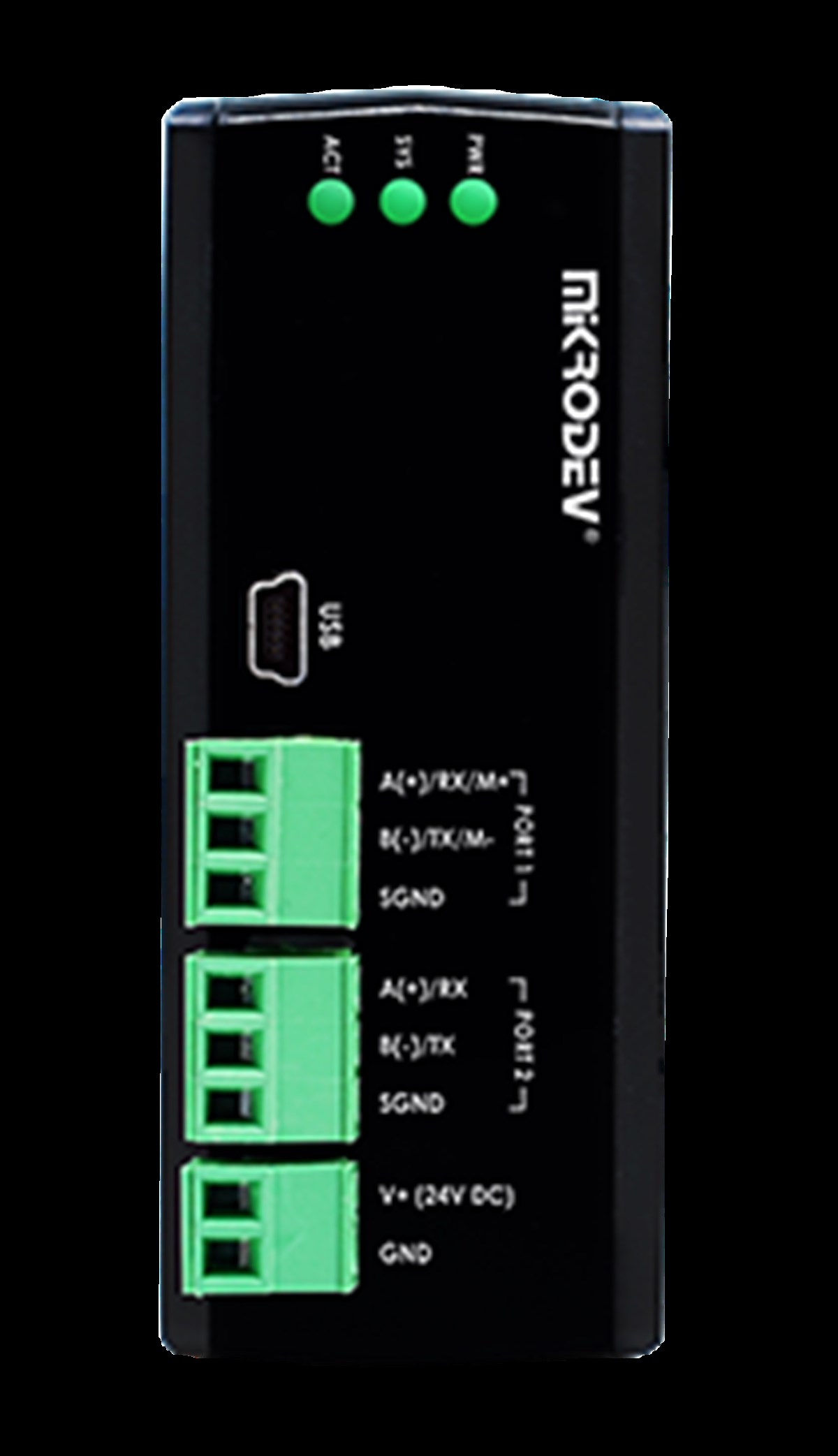

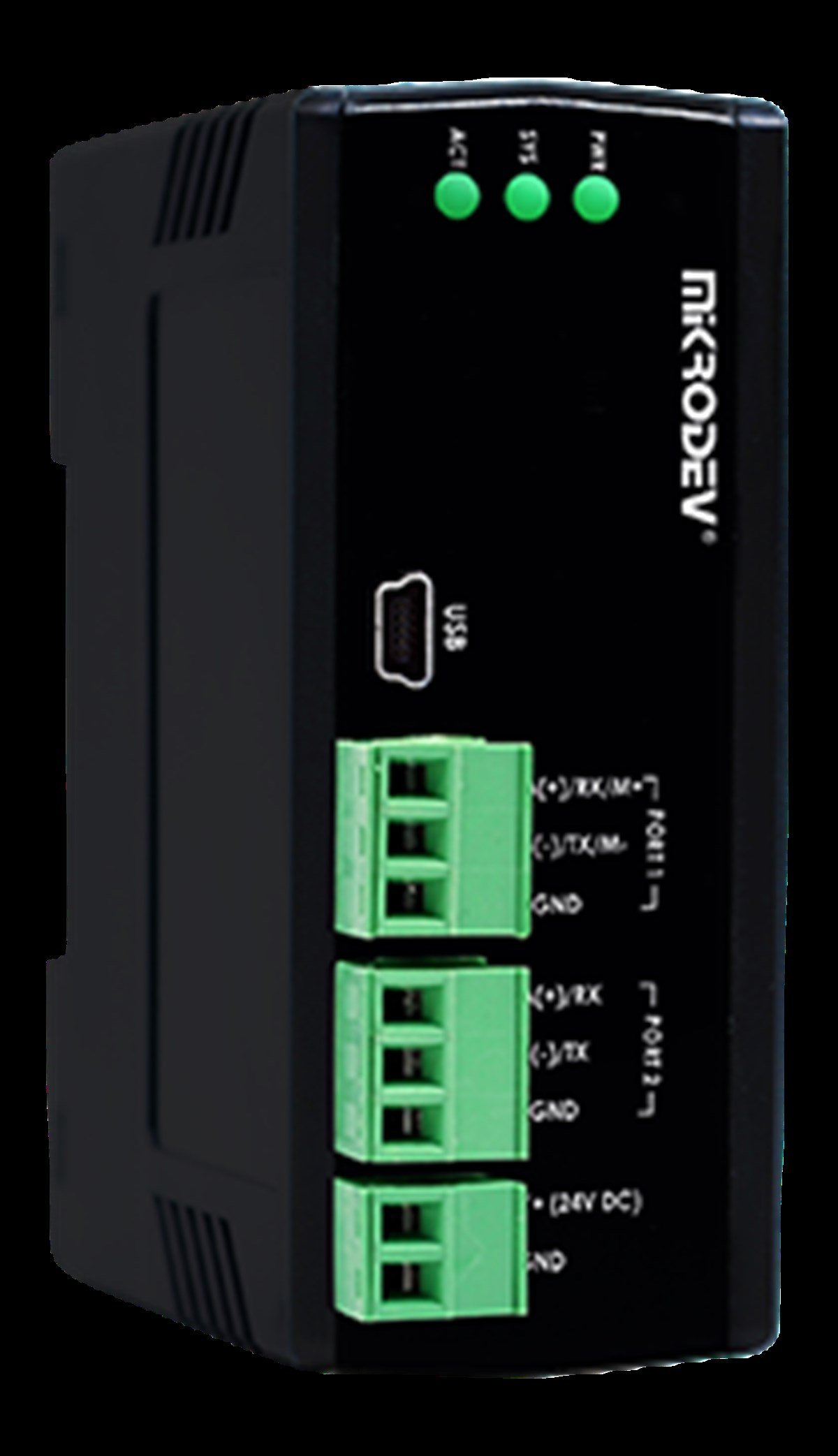

SC100 RS232-RS485 Gateway (SC100 RS232-RS485 Çevirici)

Brand : Mikrodev

Stock Amount : 0

SC100 Mikrodev RS232-RS485 Gateway

SC100 Mikrodev RS232-RS485 Gateway

Product Features
Transparent Communication	Yes
User-friendly Software for Configuring Gateway	Yes
Programming with USB Cable	Yes
Data Transmission Between Serial Ports	Yes
Multiple Connectivity	Yes
Auto-Detect Socket Disconnection and Auto-Reconnection	Yes
Stable Communication with Dynamic Structure	Yes
Programming
Programming Editor	Assistant Software
Offline Configuration	Yes
Import/Export Configuration	Yes
Integrated Communication Ports
Serial Ports	1 Port RS485 (3 kV ESD Protection), 1 Port RS232
USB	1 Port, Mini USB Type B
LED Signals
Power	1 LED Blue
Running Status	1 LED Blue
Error	1 LED Blue
Environmental Conditions
Operating Temperature	-20 / +75 C
Storing Temperature	-40 / +80 C
Humidity	5..95 RH
Protection Standard	IP20
Operating Altitude	0..2000 m
Electrical Wiring
Serial Port Inputs	Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input	Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply
Supply Voltage	9..36 VDC
Supply Current	50 mA @ 24 VDC
Warranty
Duration	24 Months
Certificates	CE
