SC100 RS232-RS485 Çevirici
SC100 RS232-RS485 Çevirici
SC100 RS232-RS485 Çevirici

SC100E Ethernet-RS232/RS485 Gateway (SC100-E1N-GC2-B0000 Eth.-RS232/RS485 Çevirici)

Brand : Mikrodev
Price : $120.00  + VAT
Vat included : $144.00
Stock Amount : 1

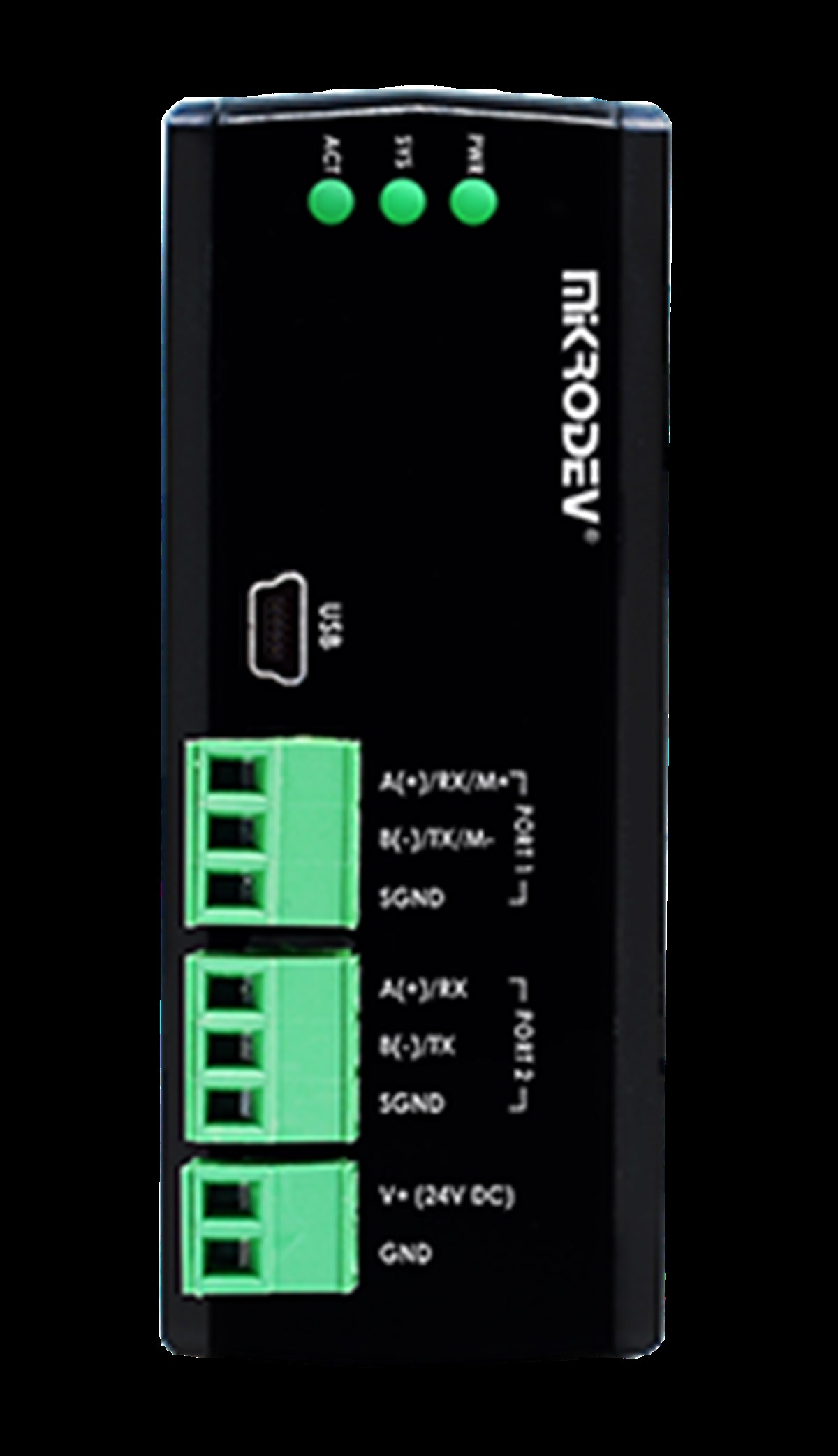

SC100E Mikrodev Ethernet-RS232/RS485 Gateway

Add to Favorites
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Piece

Artır Azalt
Recommend
Write a comment



SC100E Mikrodev Ethernet-RS232/RS485 Gateway

Product Features
Transparent Communication Yes
User-friendly Software for Configuring Gateway Yes
Programming with USB Cable Yes
Upload Program over TCP/IP Yes
Data Transmission Between Networks Yes
Multiple Connectivity Yes
Auto-Detect Socket Disconnection and Auto-Reconnection Yes
Stable Communication with Dynamic Structure Yes
Remote Firmware Upgrade Yes
View Status of Device Over Web-Interface Yes
Programming
Programming Editor Assistant Software
Device Search over Network Yes
Offline Configuration Yes
Import/Export Configuration Yes
Integrated Communication Ports
Ethernet 1 Port, 10/100 Mbps
Serial Ports 1 Port RS485 (3 kV ESD Protection), 1 Port RS232
  or 2 Port RS485
USB 1 Port, Mini USB Type B
LED Signals
Power 1 LED Blue
Running Status 1 LED Blue
Error 1 LED Blue
Environmental Conditions
Operating Temperature -20 / +75 C
Storing Temperature -40 / +80 C
Humidity 5..95 RH
Protection Standard IP20
Operating Altitude 0..2000 m
Electrical Wiring
Serial Port Inputs Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply
Supply Voltage 9..36 VDC
Supply Current 50 mA @ 24 VDC
Warranty
Duration 24 Months
Certificates CE
