SC100RF RF-RS232/RS485 Gateway (SC100RF RF-RS232/RS485 Çevirici)

Brand : Mikrodev
Price : $245.00  + VAT
Vat included : $289.10
Stock Amount : 1

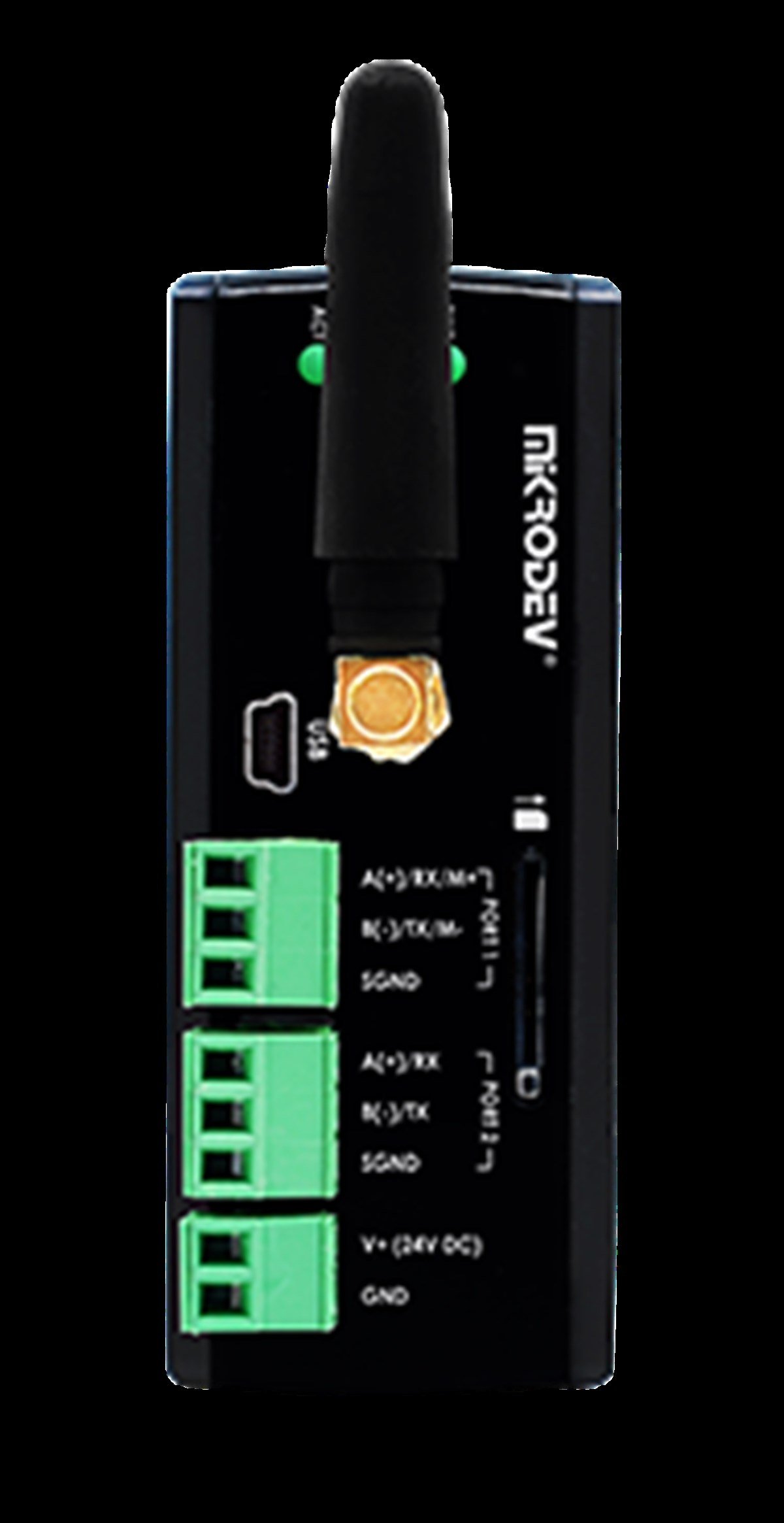

SC100RF Mikrodev RF-RS232/RS485 Gateway


Artır Azalt


SC100RF Mikrodev RF-RS232/RS485 Gateway

Product Features
Transparent Communication Yes
User-friendly Software for Configuring Gateway Yes
Programming with USB Cable Yes
Upload Program over TCP/IP Yes
Data Transmission Between Networks Yes
Multiple Connectivity Yes
Auto-Detect Socket Disconnection and Auto-Reconnection Yes
Stable Communication with Dynamic Structure Yes
Remote Firmware Upgrade Yes
View Status of Device Over Web-Interface Yes
Programming Editor Assistant Software
Device Search over Network Yes
Offline Configuration Yes
Import/Export Configuration Yes
Integrated Communication Ports
RF 1 Port, 868 MHz Free Frequency Bands, TX Power Up to 0.5 W
Serial Ports 1 Port RS485 (3 kV ESD Protection), 1 Port RS232
  or 2 Port RS485
USB 1 Port, Mini USB Type B
LED Signals
Power 1 LED Blue
Running Status 1 LED Blue
Error 1 LED Blue
Environmental Conditions
Operating Temperature -20 / +75 C
Storing Temperature -40 / +80 C
Humidity 5..95 RH
Protection Standard IP20
Operating Altitude 0..2000 m
Electrical Wiring
Serial Port Inputs Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply Voltage 9..36 VDC
Supply Current 50 mA @ 24 VDC
Duration 24 Months
Certificates CE
