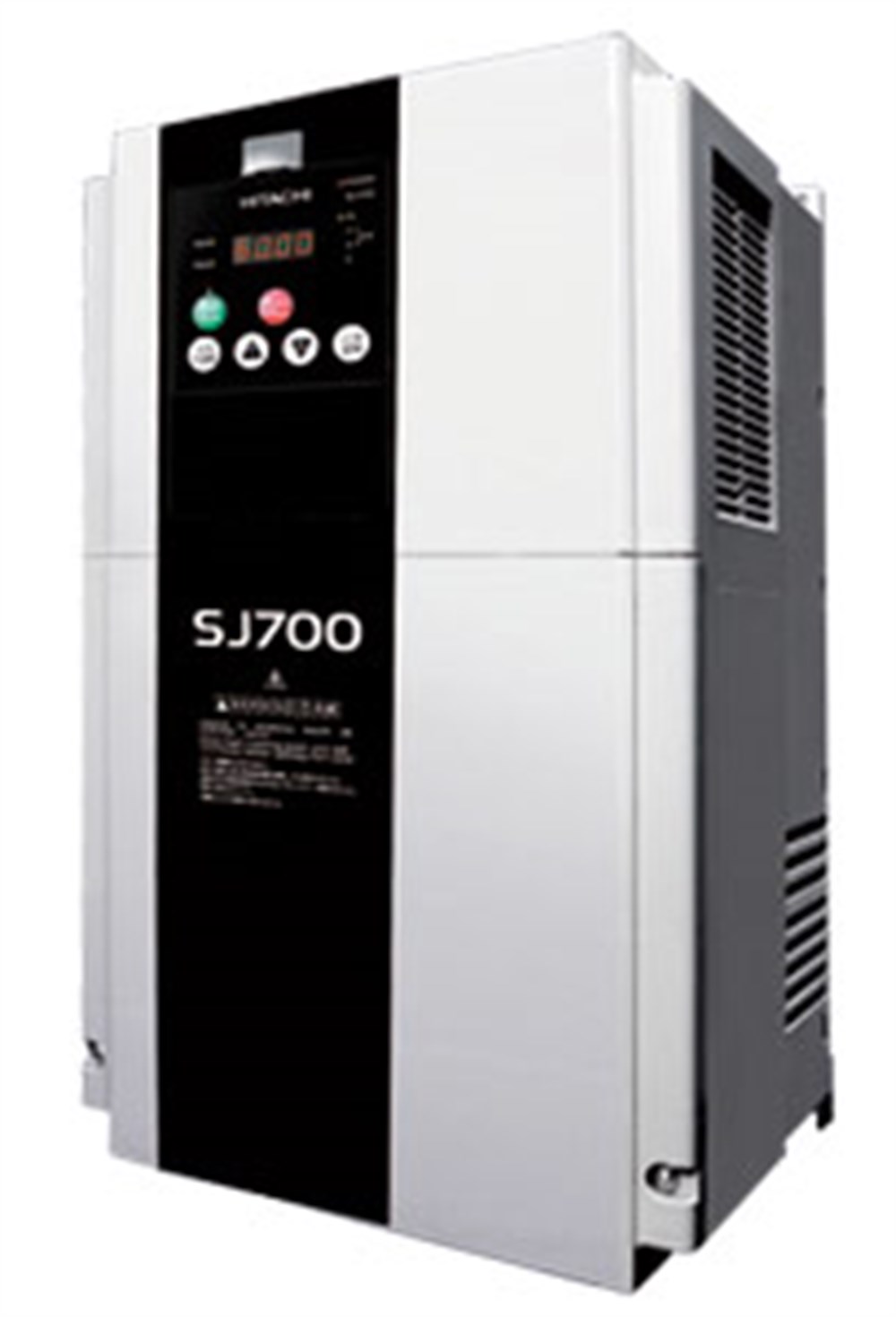

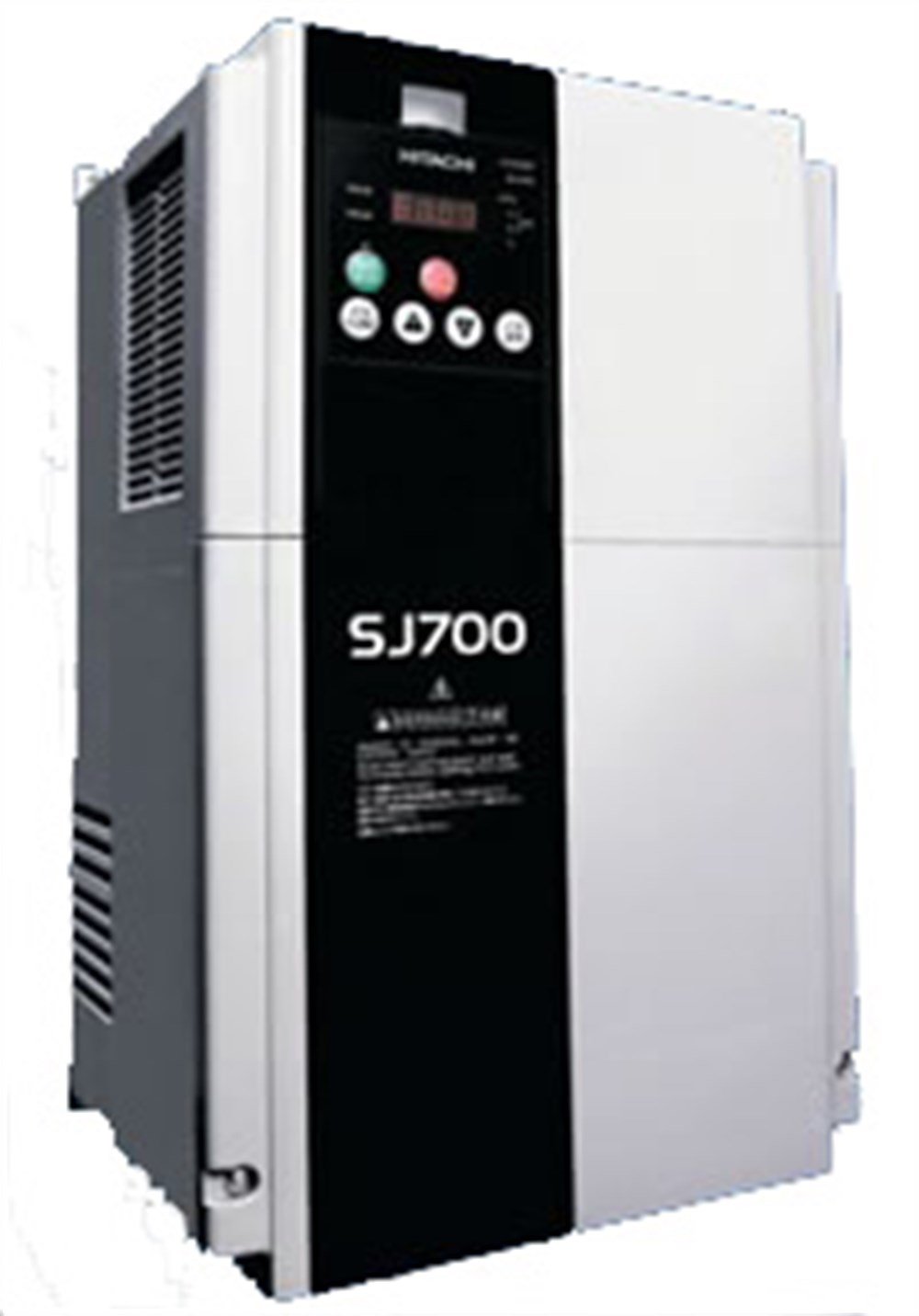

SJ700-110HFEF 400 V - 11 kW - 23 A Drive (OACHADSJ700110HFEFJP)

SJ700 Series AC Motor Speed Control Units specially developed by Hitachi are also performing real vector control in open loop. The advanced feedbackless vector (ASLV) control feature is a patented design. Thanks to this feature, it produces full torque at 0.3 Hz in open loop (without needing a unit such as encoder). Thanks to its high torque and precise process control capability it provides ideal solutions even in the most difficult applications. This product, which also works as a closed loop when requested, is easily adapted to any system with user friendly software. With the new Easy Sequence (EzSQ) programming software and precise positioning the SJ700 series of inverters handles complex applications with ease.

Standard Features :

• Power Range : 0.75 to 400 kW
• Vector Control without Advanced Feedback
• Closed Loop Vector Control
• Motor Auto-tuning
• Starting moment greater than 200%
• 0 Hz Full Torque
• Internal RS485 / RS422 communication ports
• Internal braking unit
• Internal EMC Filter
• 3 different motor connections
• PID Control
• Automatic voltage regulation
• Digital Display with Portable Potentiometer
• Ability to define 16 different speeds
• Macros that can be developed for any application
• 8 DI, 6 DO, 3AI, 3 AO
• Advanced Motor Protection features
• Temperature : -10 ... + 50 °C,
• Humidity         : 20% ... ... 90% (without condensation)
• ISO, CE, UL, c-UL, cTick, CSA

Application Areas :

• Crane and elevator applications
• Transfer lines
• Textile machines
• Printing machines
• Water sector
• Paper sector
• Glass industry
• Metal industry
• Wood sector
