SJP1-00620HFEF   400 V - 22 kW - 48 A Drive
SJP1-00620HFEF   400 V - 22 kW - 48 A Drive

SJP1-00620HFEF 400 V - 22 kW - 48 A Drive (OACHADSJP100620HFEFJP)

Brand : Hitachi
Discount Rate : %50 Discount
Price : $2,258.20  + VAT
Discounted : $1,129.10  + VAT
Vat included : $1,332.34
Stock Amount : 1

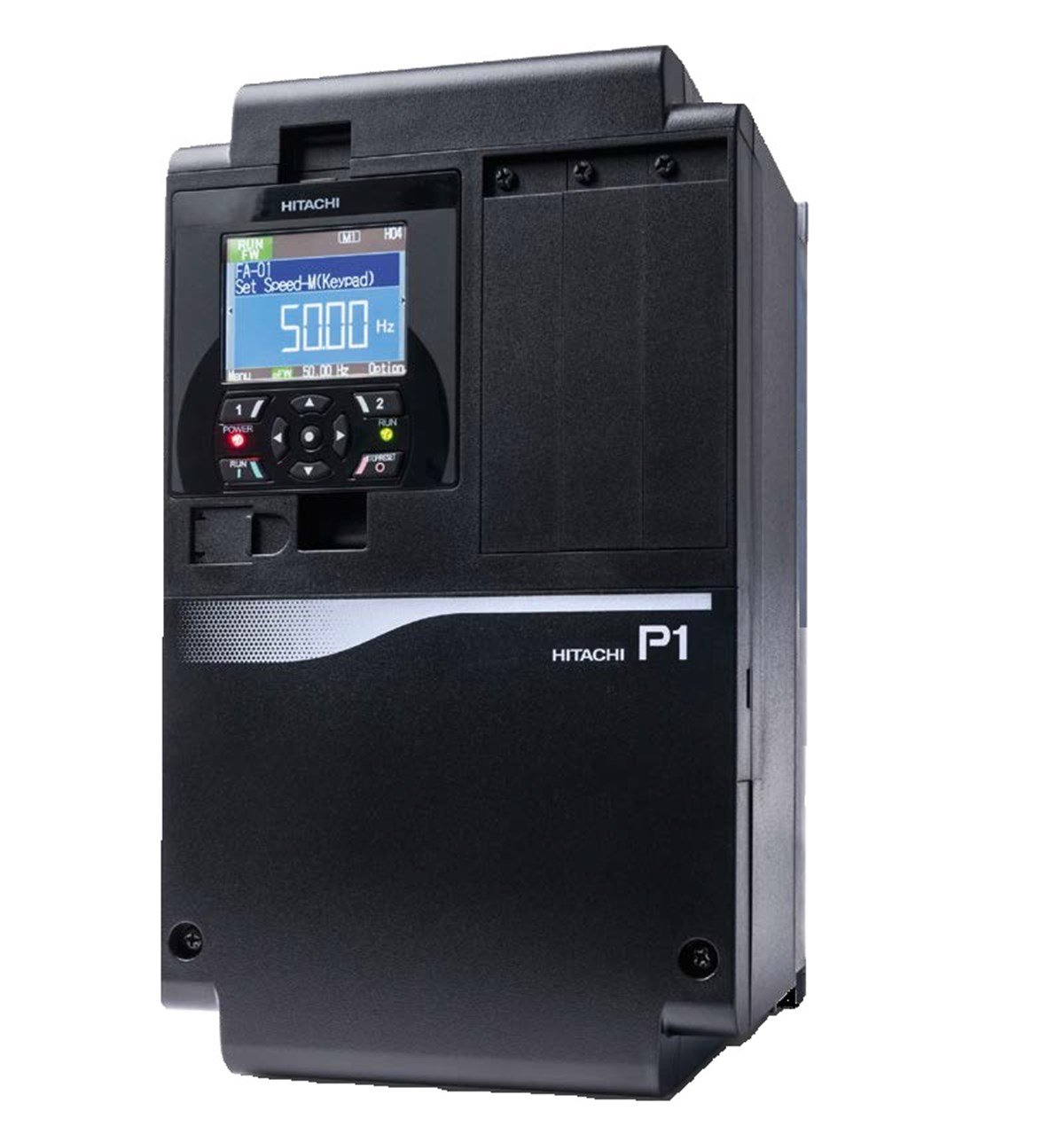

Hitachi SJP1 Frequency Converter
ND/LD(kW) = 22/30 kW
ND/LD(A)    = 48/60 A

Piece

Artır Azalt



The Induction motor(IM) and Permanent magnet motors(PM) can be driven by a single frequency converter. With Multi-Rating feature; ND, LD and VLD can be adapted according to the working conditions. This saves space and costs.The advanced feedbackless vector (ASLV) control feature is a patented design. Thanks to this feature, it produces full torque at 0.3 Hz in open loop (without needing a unit such as encoder). Thanks to its high torque and precise process control capability it provides ideal solutions even in the most difficult
applications. This product, which also works as a closed loop when requested, is easily adapted to any system with user friendly software.

Standard Features :

  • Power Range:
       -ND (for severe conditions):    0,75 kW - 132 kW
       -LD (for light conditions)     :    1,5 kW - 160 kW
  • Vector Control without Advanced Feedback
  • Closed Loop Vector Control
  • Motor Auto-tuning
  • Starting moment greater than 200%
  • 0 Hz Full Torque
  • Internal RS485 / RS422 communication ports
  • Internal braking unit
  • Internal EMC Filter
  • 3 different motor connections
  • PID Control
  • Automatic voltage regulation
  • Portable TFT Color Display
  • Ability to define 16 different speeds
  • Macros that can be developed for any application
  • 11 DI, 5 DO, 4 AI, 2 AO
  • Advanced Motor Protection features
  • Temperature -10 ... + 50 °C (in ND mode)
  • Humidity 20% .90% (without condensation)
  • CE, UL, c-UL, cTick

Application Areas :

  • Crane applications
  • Transfer lines
  • Metal industry
  • Wood sector
  • Fan / Pump Applications
