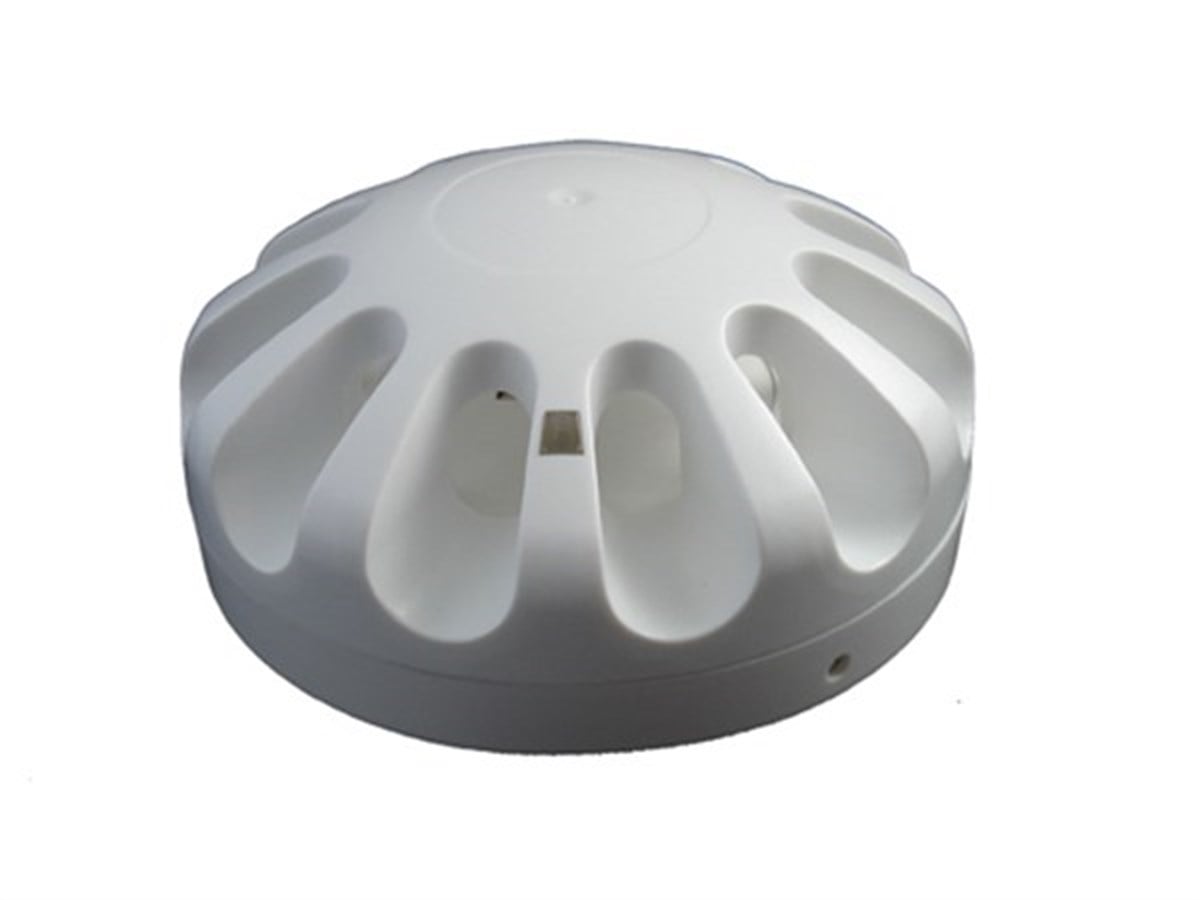

TSC05 CONVENTIONAL HEAT DETECTOR (GYKSD3ADTSC05)

TSC05 CONVENTIONAL HEAT DETECTOR

TSC05 analyze the ambient temperature by the means of thermistor type CTN.

Main characteristics:

Static / Elevation of T°

Lockable

Standard EN54-5

1 remote alarm indicator output

Cable section max 2,5mm²

Power supply specification:

Main supply voltage: 13Vdc to 27 Vdc
Nominal main supply voltage: 20 Vdc
Quiescent current (20 Vdc): 20 – 30μA
Alarm current (20 Vdc): 32mA
Fault current (24 Vdc): 140μA

Mechanical characteristics:

Unit weight: 130g
Unit dimensions (in mm): H:55 D:104
Unit row material: ABS
Unit colour: White
IP rating: IP32
Mounting mode: Base

Climatic characteristics:

Operating temperature: -10°C to +50°C
Storage temperature: +10°C to +50°C
Operating relative humidity: ≤ 93%
Storage relative humidity: ≤ 85%
