VIREX KONVANSİYONEL INFRARED ALEV DEDEKTÖRÜ (EXPROOF)
VIREX KONVANSİYONEL INFRARED ALEV DEDEKTÖRÜ (EXPROOF)

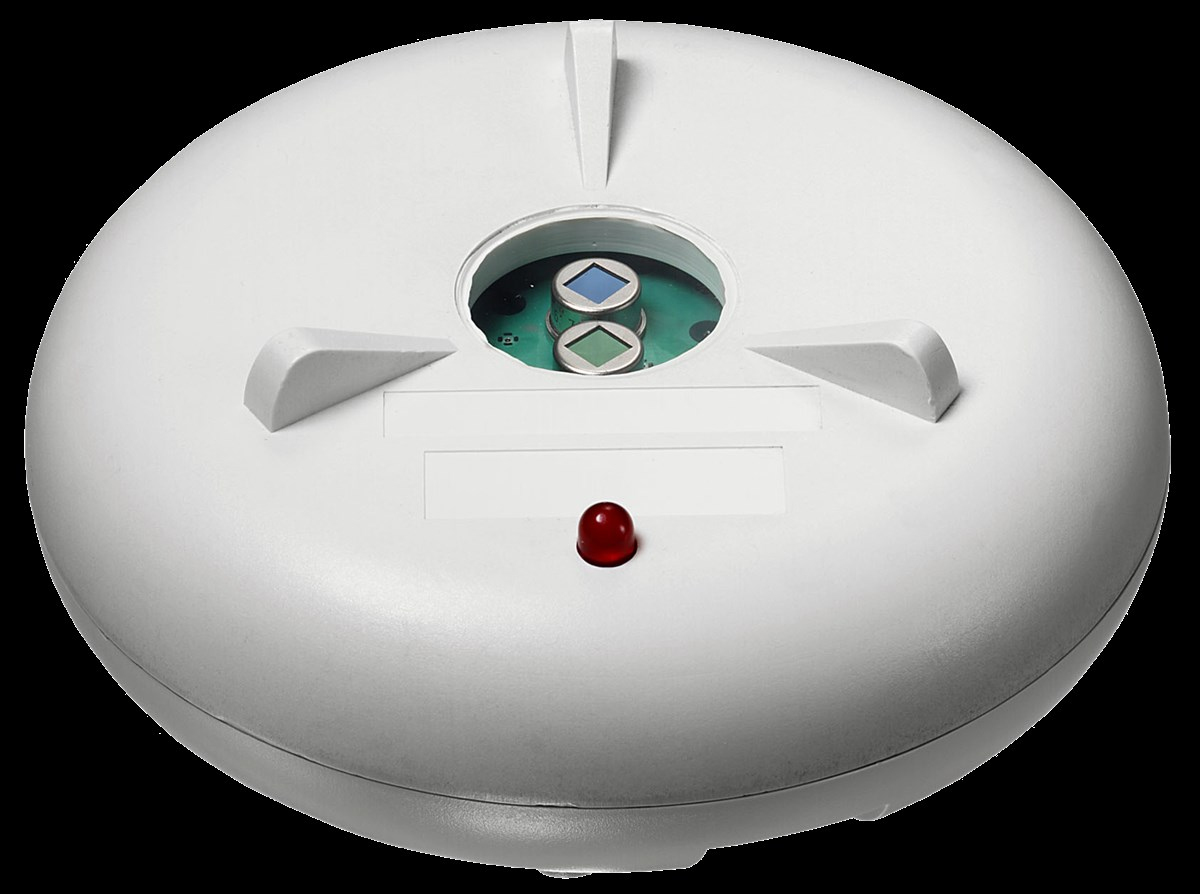

VIREX Infra-red Flame Detector with base(Atex) (GYKSD3VIREX00)

Brand : SD3
Discount Rate : %20 Discount
Vat included : $1,065.48
Discounted : $710.32  + VAT
Vat included : $852.39
Stock Amount : 8

VIREX Infra-red Flame Detector(Atex)

ADET

Artır Azalt

VIREX Infra-red Flame Detector(Atex)



Double infrared sensor which permit to measure the exclusive presence of CO2 signature from visible flame. It needs a dedicated base SVEX.

CE 0081 II 1 G Eex ia IIC T6/ LCIE 03 ATEX 6349 X

The protection system consists in limiting the energy available in the dangerous atmosphere in such a way that the combustion of the ambient gaseous mixture cannot occur, even in abnormal conditions of use.

VIREx detectors in combination with a Zener barrier and complying with a special connection mode form an intrinsic safety system.

The VIREx is designed to monitor premises with explosible atmospheres whatever the degree of danger, in accordance with CEI 79-10 (zone 0, zone 1 or zone 2)

ELECTRİC CHARACTERISTICS

The product is classified intrinsic safety for a limited power supply with maximum intensity characteristics of : 28 Vdcs - 110mA.



PARAMETERS

VIREx

Supply voltage

Nominal 20 Vdc (9 to 28 Vdc)

Consumption on standby

515 µA on 20 V

Consumption on alarm

32 mA on 20 V

Action Indicator output, collector open

40V max.

limited to 24 mA on 24V























SENSITIVITY

Detector sensitivity is adjustable with a special tool. This means the 3 classes defined for the 2 types of fires in standard EN54-10 can be obtained :

class 1 : distance ³ 25 m,

class 2 : distance ³ 17 m and implicitly class 3: distance >12 m.

The VIREx is set for class 2 on roll-out.

This means the user can opt for class 1 or 2, by changing the threshold using the "T.E.A.".

CONE OF VISION

The angle of vision within the meaning of standard EN54-10 is ±30° around the optical axis of the detector.

It is ±45° around the optical axis of the detector at maximum mid-distance.



MECHANICAL  CHARACTERISTICS



PARAMETERS

VIREx

Weight with base

145 gr

Footprint in mm (Æx h)

104 x 41

Protection number

IP20

Material

ABS AE

Color

egg-shell

Fastening

onto SV base



CLIMATIC CHARACTERISTICS

PARAMETERS

VIREx

Temperature

  • operating
  • storage

- 10 to + 55°C

+ 10 to + 50 °C

Admissible relative humidity

  • operating
  • Storage

< 95% without condensation

< 85% without condensation
