WJ200-015SF   220 V - 1,5 kW - 8 A Drive

WJ200-015SF 220 V - 1,5 kW - 8 A Drive (OACHADWJ200015SFJP)

Brand : Hitachi
Stock Amount : 0

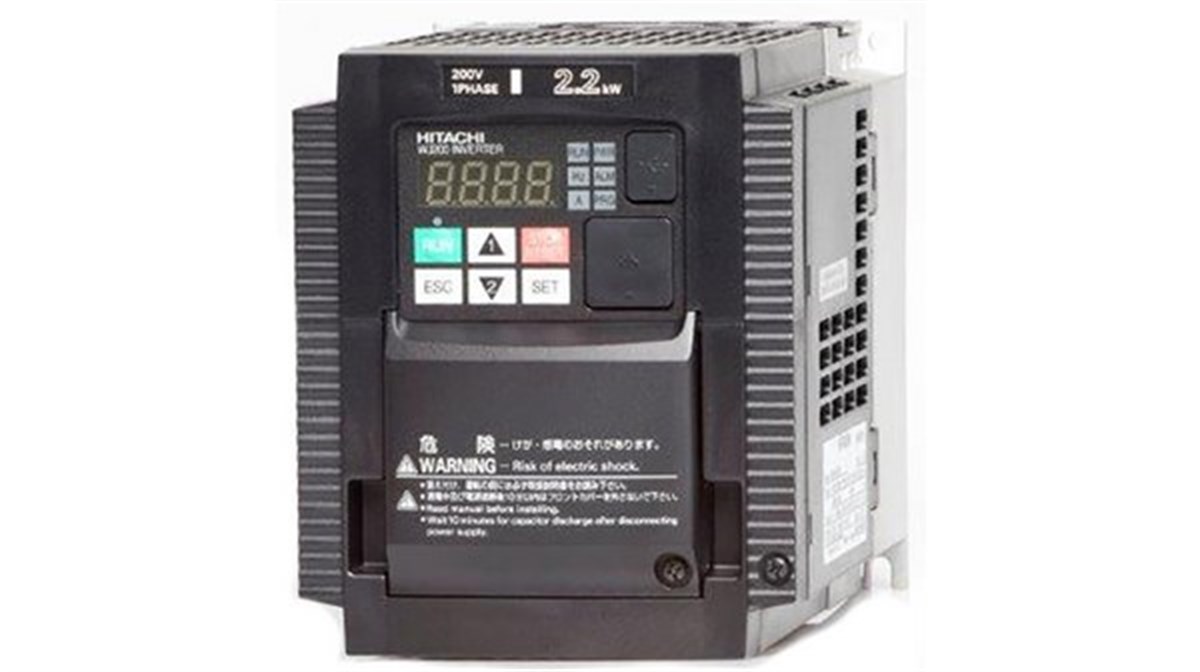

Hitachi WJ200 Frequency Converter
Single-phase Input
CT/VT(kW) = 1,5/2,2 kW
CT/VT(A)    = 8/9,6 A



The WJ200 is a compact product ready to meet a variety of application needs. The asynchronous motor or the Permanent Magnet Motor WJ200 can be easily connected with the same control unit. Intelligent feedbackless vector control technology provides up to 200% starting torque. It is easy to connect to the system with user friendly software. With the new Easy Sequence (EzSQ) programming software and precise positioning the WJ700 series of inverters handles complex applications with ease. High current rejection at acceleration, much safer with slow voltage overvoltage protection, more protection against errors.

Standard Features :

  • Two Different Motor Connectivity Features  (Induction Motor or Permanent Magnet Motor)
  • Side Mounting Facility
  • Power Range :
           -CT (for Heavy Duty): 0.1 kW - 15 kW
           -VT (for Normaly): 0.4 kW to 18.5 kW
  • Two Different Input Voltage Voltage Options
           1 Phase (200 V) -> 200-240 V + 10% / -15%
           3 Phase (400 V) -> 380-480 V + 10% / -15%
  • 200% Start-Up Moment (Vector control without feedback)
  • Closed Loop Vector Control
  • Motor Auto-Tuning
  • Screwless in Control Circuit (With Spring Terminal) Easily Connectivity
  • Maximum Torque at 0 Hz
  • Built-in RS485 / RS422 Communication Ports (with RJ45 Connector)
  • PID Control
  • Automatic Voltage Regulation
  • Built-in 7-Segment Led Digital Display (4 digits)
  • User-Replaceable Fan
  • 16 Different Speed ??Definitions
  • Electronic Components RoHS Compliant
  • Built-in 7 DI, 2 DO, 1 AI, 1 AO,
  •   1 Relay Alarm Output(NA, NK), 1 Pulse Input,  1 Pulse Output
  • Built-in mini USB Port
  • Advanced Motor Protection features
  • Temperature : -10 ..... + 50 ° C
  • Humidity         : 20% .... 90%
  • Certified by CE, UL, c-UL, cTick, CSA
