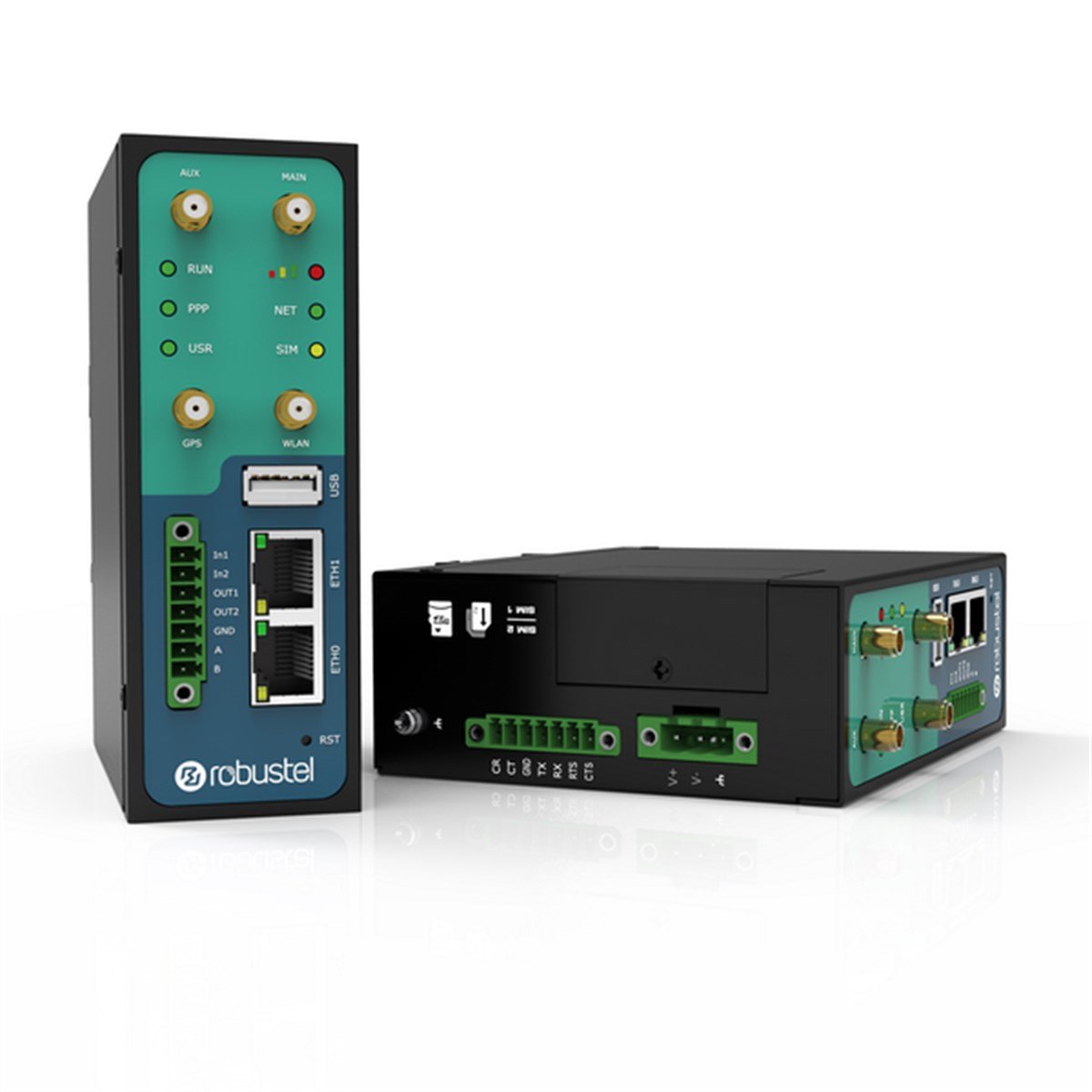

R3000-3P Robustel 3G Router
R3000-3P Robustel 3G Router

R3000-3P Robustel 3G Router (R3000-3P)

Marka : Robustel
Stok Miktarı : 1

Çift SIM 3G  Router, 2 Ethernet,
HSPA+/UMTS 850/900/1900/2100 MHz
2 Seri Portlu

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz



Çift SIM 3G  Router, 2 Ethernet,
HSPA+/UMTS 850/900/1900/2100 MHz
2 Seri Portlu


  • 3G haberleşmede kesintisiz ve sorunsuz bağlantı için çift SIM kart
  • WAN link yönetimi: Hücresel WAN/Ethernet WAN/WLAN WAN yedek hat
  • VPN tunnel: IPSec/OpenVPN/PPTP/L2TP/GRE.
  • Modbus Gateway özelliği: Modbus RTU/ASCII'den Modbus TCP'ye çift yönlü dönüşüm
  • Kullanıcılara programlama ara yüzü sunan SDK (yazılım geliştirme paketi) desteği
  • SMS/Caller ID/Timing ile Auto reboot
  • RobustLink merkezi M2M yönetim platformu desteği (ücretsiz yazılım)
  • Esnek yönetim metotları: Web/CLI/SNMP/RobustLink
  • Web/CLI/USB/SMS/RobustLink ile firmware güncelleme
  • RS-232, RS-485, konsol,  DI/DO, USB ve Ethernet gibi çok çeşitli ara yüz desteği
  • 9 - 60 VDC geniş voltaj giriş seçeneği ve geniş çalışma sıcaklık aralığı
  • DIN-Ray veya duvar montajı yapılabilen metal muhafaza

Robustel R3000 serisi, ağır endüstriyel koşullarda çalışmak üzere tasarlanmış bir 3G VPN router'dır. Machine to machine (M2M) uygulamalarda kesintisiz haberleşme imkanı sağlayan, üst düzey haberleşme fonksiyonlarına sahip cihazlardır. Aşağıdakiler dahil geniş bir yelpazede uygulamalara hitap eder:

  • ATM/Otomat Bağlantısı
  • Güneş / Rüzgar Enerjisi Otomasyon Sistemi
  • Enerji Dağıtım Otomasyon Sistemi
  • Otomatik Sayaç Okuma Sistemi
  • Endüstriyel Otomasyon
  • IP Video Görüntüleme ve Güvenlik Sistemi
  • Uzak Cihazlara Erişim ve Kontrol Sistemi





Cellular Interface
Number of antennas 2 (MAIN + AUX)
Connector SMA-K
SIM 2 (3 V & 1.8 V)
Ethernet Interface
Number of ports 2 x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN
Magnet isolation protection 1.5 KV
Wi-Fi Interface (Optional)
Number of antennas 1
Connector RP-SMA-K
Standards 802.11a/b/g/n, supporting AP and Client modes
Frequency bands 2.4 GHz
5 GHz
Security Open,WPA, WPA2, WEP
Encryption AES, TKIP, WEP64
Data speed Up to 150 Mbps
GPS/GLONASS Interface (Optional)
Number of antennas 1
Connector SMA female with 50 ohms impedance
Tracking sensitivity GPS: greater than -148 dBm
GLONASS: greater than -140 dBm

Horizontal position

 GPS: 2.5 m
accuracy GLONASS: 4.0 m
Protocol NMEA-0183 V2.3
Serial Interface
Number of ports

1 x RS-232 + 1 x RS-485
or 2 x RS-232 or 2 x RS-485

Optional hardware is 2 x RS-485 or 2 x RS-232
Connector 7-pin 3.5 mm female socket with lock
ESD protection ±15 KV
Baud rate 300bps to 230400bps
DI/DO
Type

2 x DI (dry contact) + 2 x DO (wet contact),

4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x DI
Connector 7-pin 3.5 mm female socket with lock
Isolation 3KVDC or 2KVrms
Absolute maximum VDC “V+” +5V DC (DI), 30V DC (DO)
Absolute maximum ADC 300 mA
Others
Reset button 1 x RST
SD 1 x Micro SD interface
Expansion 1 x USB 2.0 host up to 480 Mbps
LED indicators

1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET,1 x SIM
Built-in RTC, Watchdog, Timer
Software (Basic features of RobustOS)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH2, etc.
VPN tunnel IIPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Serial port

Transparent, DNP3 Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
App Center (Available apps for RobustOS)
Apps

L2TP, PPTP, DMVPN, VRRP, QoS,

Language, RCMS
*Request on demand. For more APPs please visit www.robustel.com.
Power Supply and Consumption
Connector 3-pin 5 mm female socket with lock
Input voltage 9 to 60 VDC
Power consumption Idle: 100 mA@12 V
  Data link: 400 mA (peak) @12 V
Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 570 g
Dimension 125 x 104 x 43.5 mm
Installation

Desktop, wall mounting and 35 mm DIN rail mounting

Approvals

Regulatory

CE, NBTC, FCC, RCM, PTCRB, GCF, IC, IMDA, EAC, Anatel, UL, CB, ICASA

Carrier

AT&T, Rogers, Vodafone

Application

C1D2, E-mark (Vehicle), IEC 61000-4-12

(Electromagnetic Compatibility – Oscillatory Waves Immunity Test)

Environmental

RoHS 2.0, WEEE

EMI

EN 55032: 2012/AC: 2013 (CE & RE) Class B

EMS

IEC 61000-4-2 (ESD) Level 4

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

IEC 61000-4-3 (RS) Level 4

IEC 61000-4-4 (EFT) Level 4

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

IEC 61000-4-8 (M/S) Level 4





Model

R3000-3P

R3000-4L

R3000-NU

Router Type

HSPA+ Router

LTE Router

Wireline Router

Air Interface

GSM/GPRS/EDGE/HSDPA/

HSUPA/HSPA+

GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/

TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE

—



Frequency Bands

—

Global: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/
B28, B38/B39/B40/B41
AU: B1/B2/B3/B4/B5/B7/B8/B28, B40

EMEA: B1/B3/B5/B7/B8/B20, B38/B40/B41

CN: B1/B3/B5/B8, B38/B39/B40/B41

—

4G*

3G

B1/B2/B4(AWS)/B5/B8/B19

Global: B1/B2/B4/B5/B6/B8/B19, B34/B39

AU: B1/B8
EMEA: B1/B5/B8
CN: B1/B5/B8, B34/B39, BC0

—

2G

B2/B3/B5/B8

CN/EMEA: B3/B8

AU/Global: B2/B3/B5/B8

—

Operating Temperature

-40 to +75 °C

-40 to +75 °C

-40 to +75 °C

Storage Temperature

-40 to +85 °C

-40 to +85 °C

-40 to +85 °C

Relative Humidity

5 to 95% RH

5 to 95% RH

5 to 95% RH



*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
